Kanazawa University research: High-speed AFM and 3D modelling help towards understanding the dynamics of a protein implicated in several cancers

KANAZAWA, Japan, June 11, 2025 /PRNewswire/ -- Researchers at the Nano Life Science Institute (WPI-NanoLSI), Kanazawa University observe and model how the enzyme ADAR1 interacts with double-stranded RNA, which may be useful for future cancer treatment strategies.

An enzyme type noted in several cancers is the family of adenosine deaminases acting on RNA (ADARs). These enzymes convert adenosines in double-stranded RNA (dsRNA) into inosines, which cells read as guanosines. As such, ADARs can contribute to changes in protein-coding sequences and diminish the robustness of various RNA processes. Studies have shown that silencing one type of ADAR – ADAR1 – can prevent cancer proliferation and sensitize cancers to immunotherapy, suggesting that they could be a promising target for cancer treatments.

However, so far, it has been difficult to pin down information on the structural dynamics of ADAR1 due to its size and complexity. Now, researchers led by Madhu Biyani at Kanazawa University, WPI-NanoLSI, Yasuhiro Isogai at Toyama Prefectural University, and Manish Biyani at Ishikawa Create Labo and Kwansei Gakuin University have combined high-speed atomic force microscopy (HS-AFM) and 3D modelling to shed light on the enzyme's conformations and interactions with dsRNA.

Like many proteins, ADAR1 functions through changes in its conformation. However, most experimental techniques for determining protein structure, as well as 3D modelling algorithms, give static or average conformations that obscure the structural dynamics so important to the protein's function. Combining 3D modelling with HS-AFM proved helpful in shedding light on these dynamic aspects of ADAR1.

The researchers first used 3D modelling based on the machine learning algorithm AlphaFold2 to predict the conformations of the enzyme and noted that it could take the form of monomers, dimers, trimers, and tetramers. HS AFM observations, as well as theoretically simulated HS AFM, supported these initial conclusions regarding the possible oligomer formations.

The researchers then looked at the conformations the enzyme formed in the presence of double-stranded RNA (dsRNA). In particular, the researchers focused on a certain aryl hydrocarbon receptor 3'UTR mRNA as the target for ADAR1, since this receptor is known to be involved in the metabolism of substances alien to the body at those points. Observations of the dsRNA with HS-AFM not only agreed with previous structural studies but were able to provide insights into the structure of the target region in particular.

Thanks to the speed and resolution of the HS-AFM image capture, the researchers were able to identify different conformations in the proteins that seemed to relate to distinct phases of the deaminizing process. In their report of the work, the researchers explain how ADAR1 first "searches" for the dsRNA and on "recognizing" it, adopts a flexible conformation as it approaches. The enzyme then engages in what the researchers describe as "capture" of the dsRNA backbone, for which the conformation transitions to something more stable and "anchor-like". The researchers highlight the role of dsRNA binding domains (dsRBDs) to stabilize the interaction with the dsRNA at this stage. They also note "a visibly large interfacial interaction between the deaminase domains, forming a dimer" as the enzyme dimer loops out on the dsRNA. The enzyme subsequently scans the RNA and dissociates to search for adenosine sites to convert.

"These observations suggest that the dsRBDs are critical for initiating interactions between the deaminase domains, thereby promoting the formation of a stable, functional dimeric complex capable of efficiently binding and catalyzing the editing of dsRNA substrates," the researchers conclude in their report, thereby flagging the insights this study offers for further work towards possible cancer therapeutics.

The researchers further propose future studies to compare ADAR1 and ADAR2, and to perform mutation analyses to clarify how ADAR1 dimerization influences A-to-I RNA editing, ultimately aiming to develop effective ADAR1 inhibitors.

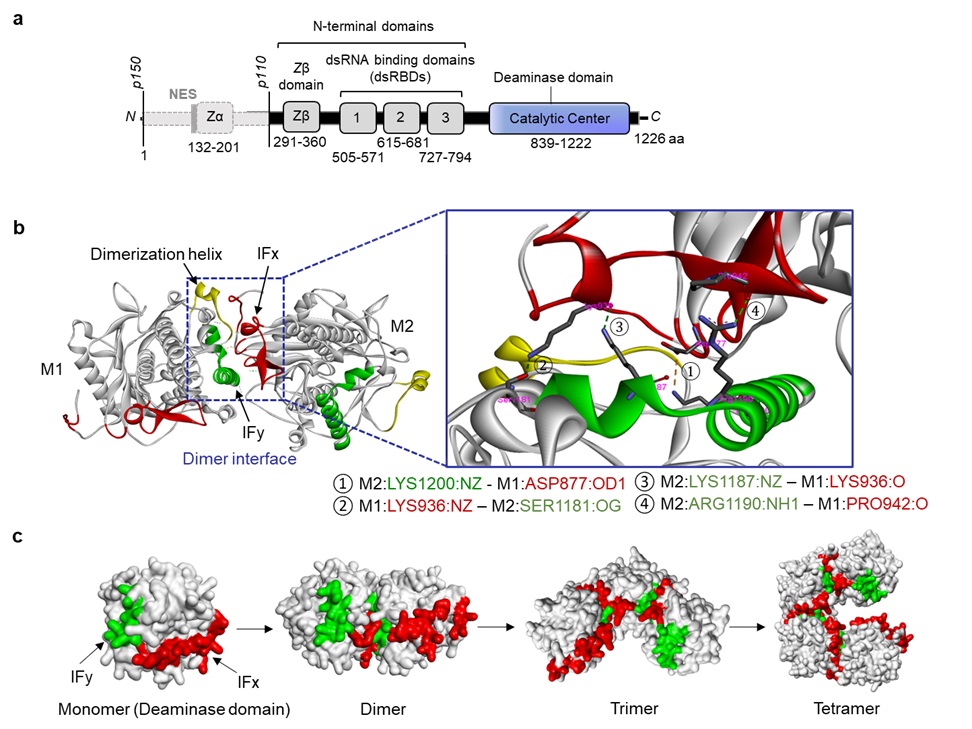

Figure 1: Three-dimensional modeling analysis of ADAR1 oligomerization.
https://nanolsi.kanazawa-u.ac.jp/wp/wp-content/uploads/Fig.-1_Nat.-Commun._Jun.-2025.jpg
© 2025 Biyani, et al., Nature Communications

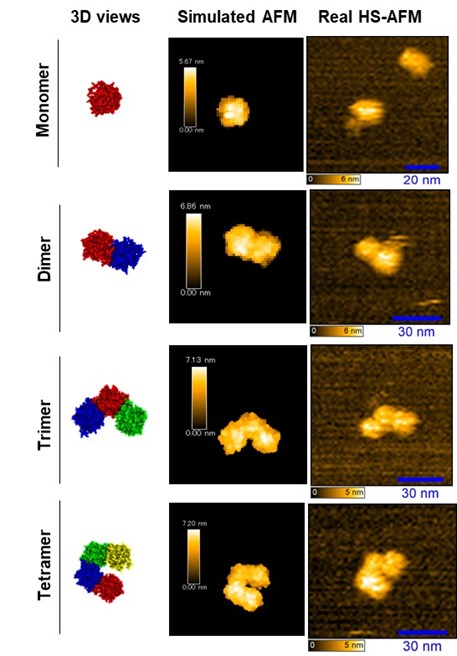

Figure 2: Simulated AFM images of ADAR1 oligomerization.
https://nanolsi.kanazawa-u.ac.jp/wp/wp-content/uploads/Fig.-2_Nat.-Commun._Jun.-2025.jpg
© 2025 Biyani, et al., Nature Communications

Glossary

Atomic force microscopy

This imaging technique uses a nanosized tip at the end of a cantilever that is scanned over a sample. It can be used to determine the topography of a sample surface from the change in the strength of forces between the tip and the sample with distance, and the resulting deflection of the cantilever. It was first developed in the 1980s, but a number of modifications have augmented the functionality of the technique since. It is better suited to imaging biological samples than the scanning tunnelling microscope that had been previously developed because it does not require a conducting sample.

In the 2000s, Toshio Ando at Kanazawa University was able to improve the scanning speed to such an extent that moving images could be captured. This allowed people to use the technique to visualize dynamic molecular processes for the first time.

ADARs

Adenosine deaminases acting on RNA (ADARs) convert adenosine to inosine, which is interpreted by cells as guanosine. This editing can influence alternative splicing,  miRNA processing, double-stranded RNA stability, and protein-coding sequences. In mammals, there are two known ADARs responsible for adenosine to inosine RNA editing – ADAR1 and ADAR2. Notably, overexpression and increased activity of ADAR1 have been observed in cancers of the liver, breast, esophagus, prostate, and bone marrow.

3D modelling

Several techniques are now available for protein structure prediction. In this study, the researchers used AlphaFold2 to model the structure of human ADAR1. Due to disorder regions in the N-terminal 822 residues, the final model focused on residues 823-1226, which encompass the deaminase domain. This monomer model served as the basis for building higher-order structures—dimer, trimer, tetramer, and polymer by superimposing it onto the ADAR2 dimer structure (PDB ID:1ZY7) through sequence alignment. Since determining ADAR1's full structure is challenging due to its size and complexity, the better-characterized ADAR2 provided a template to generate ADAR1 multimer models.

Reference

Madhu Biyani, Yasuhiro Isogai, Kirti Sharma, Shoei Maeda, Hinako Akashi, Yui Sugai, Masataka Nakano, Noriyuki Kodera, Manish Biyani, Miki Nakajima, High-speed atomic force microscopy and 3D modeling reveal the structural dynamics of ADAR1 complexes, Nature Communications 16, 4757 (2025).

DOI：10.1038/s41467-025-59987-6

URL: https://www.nature.com/articles/s41467-025-59987-6
